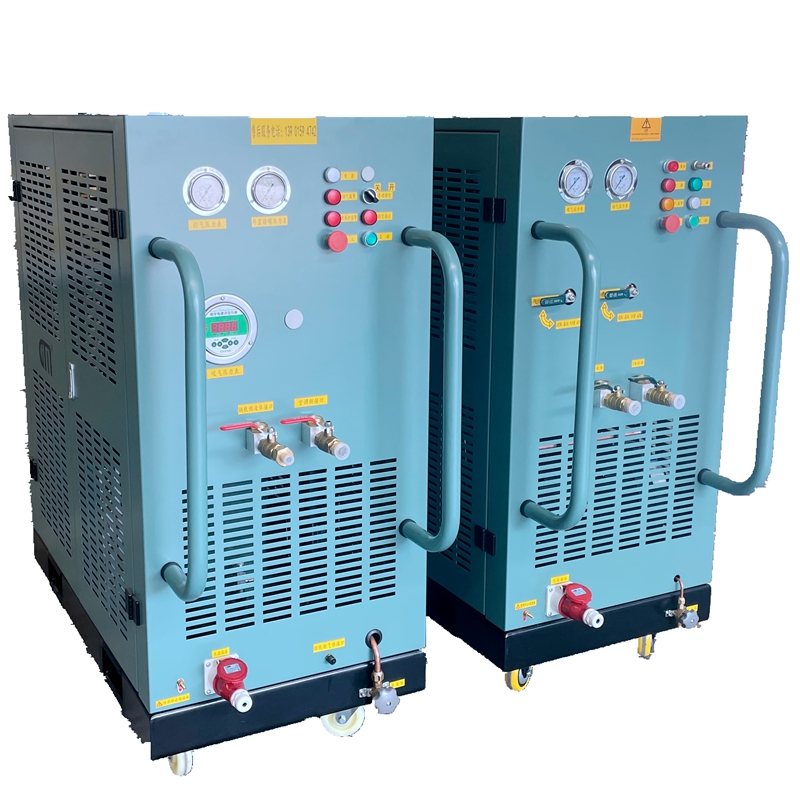

WFL16/WFL18 R22 refrigerant auto ac recharge and recovery machine
Advantages
• Performance has become a forefront of the industry and meet
ARI-700 standards;
• Universal for CFC/HCFC/HFC of medium & low pressure refrigerants;
• 24-hour continuous working;
• No need for special maintenance when recovery different
refrigerants, just evacuation.
• No cross contamination;
• High performance/price ratio - rapid investment return
Maintenance is simple.
Product Feature of WFL16/WFL18 R22 refrigerant auto ac recharge and
recovery machine
• Oil-free lubricating compressor - compatible with CFC/HCFC/HFC
refrigerants
• Fast recovery recharging rate for both liquid and vapor
refrigerants
• Multi-function valve design- simple operation in vapor and
push/pull recovery
• Perfect protection system - safe credibility;
• Thorough recovery refrigerant and automatic stop when the suction
pressure is up to -0.04Mpa
• Easy to operate and convenient to move;
• Perfect protection system- safe credibility;
• Water/cooled design - Effective heat dissipation;
• For 3000kg cooling system, finish all the refrigerant recovery
within 5 hours;
Model | Oil-free Compressor | Vapor Recovery Rate | Pull/Push Recovery Rate | Scope of Application |
WFL16 | 5 HP | ≤120kg/h | ≤6000kg/h | ≤2000kg |
WFL18 | 7.5 HP | ≤180kg/h | ≤9000kg/h | ≤3000kg |
Working & Environmental Temp.: -10-60 degree
Cooling Type: water cooled( air cooled is optional)
Recovery Mode: Vapor & Push/Pull Liquid Recovery
Hose: 3/4"
Voltage of WFL16 R22 refrigerant auto ac recharge and recovery
machine (optional)
50Hz/3PH/380V 50Hz/3PH/400V
50Hz/3PH/415V 60Hz/3PH/380V
60Hz/3PH/440V 60Hz/3PH/460V
1/2" connecting hose(length is customizable)
3/8" connecting hose(length is customizable)
5/8" connecting hose(length is customizable)
3/4" connecting hose(length is customizable)
3/4" to 3/8" adapter
3/4" to 1/4" adapter
3/4" to 5/8" adapter
3/4" filter
Cylinder (20L-1000L) customizable
Float switch for cylinder
(length of power cord is customizable)
Transfer refrigerants from ISO tank to tonnage tank;
Service chillers & other large & medium cooling systems below 3000
cooling ton;
Large & medium central A/C factories;
On site maintenance of lage & medium HVAC/R products
Electric Oil Pump
Manual Oil Pump
Steel Cylinder
Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
CM(ChunMu)@ChinaRefrigerationExpo
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
|
|
