Single Filling System PLC R22 R410a Automatic Refrigerant Charging Machine A/C Gas Recovery Recharge Machine

Product Description

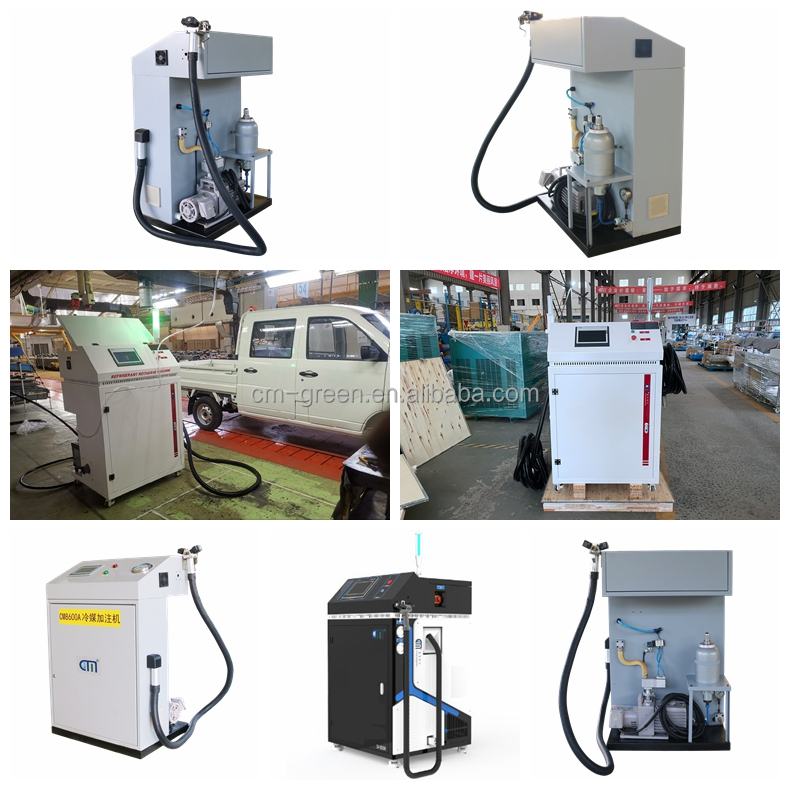

CM8600 (Single System) High Speed Refrigerant Charging Machine

CM8600 series refrigerant charging machine is specially designed to charge refrigerant fluid R134A,R410A...etc to refrigeration system assembly line. It combines all in one in order to perform evacuation, leak test and refrigerant charges to meet the customers demand for affordable high precision and high quality based on CM smart controltechnology, the charging machine uses the well known Siemens Programmer giving the user a colourful and convenient touch interface,you set the data,let the machine complete the job for you.

Specification

Equipment model	CM 8600 S Series
Device Serial Number	S 100
Filling speed	≥100 g/s (6 kg/min)
Single charge amount	20-9999999 g
Filling accuracy	≤2 g ;500 g-2000 g,≤±0.5% ;>2000 g,≤±0.3%
Measurement methods	RRT American Ruby Flow Meter
Resolution ratio	0.1 g
Equipment certification	CE
Vacuum rate	8 L/S
Vacuum degree of machine	3-5 pa
Filling gun port	Hansen 1/4 or 3/8 quick connectors
Length of filling gun	Standard with 3 meters, other specifications 3-10 meters optional
Communication interface	RS485/RS232/Ethernet
Channels quantity	100
Compressed air pressure	0.5-0.7Mpa
Programmer	Siemens
Power supply	380V 50Hz 3Phase or 220V 50Hz 1Phase
Dimension	900*800*1340 mm
Approved refrigerants	R134a, R22, R513a, R404A, R410A, R406A etc.

Features

·Siemens smart PLC technology for fast and accurate operation process

·Large colorful touch screen make the operation easy and simple

·High precision mass flowmeter technology ensures charging accuracy

·Powerful pneumatic booster pump for high speed charging rate

·The continuous charging quantity up to 99999g

·Automatic reminder function when the liquid supply tank is lack of refrigerant

·Combine vacuum, leakage inspection, refrigerant charging to all in one system

·Equipped with leakage alarm device

·High charging accuracy

Related Products

Application Scene

Company Information

ChunMu Refrigeration,well know as "CM" was established in 1998, a comprehensive hi-tech enterprise specialized in R&D, manufacturing oil less refrigerant recovery,reclaim and charging equipment in HVAC/R industry. In the past 24 years,CM provides one stop engineering and manufacturing designed to provide its’ customers with customized solutions

to meet their commercial and residential HVAC service needs. Whatever your HVAC service needs may be, CM has the knowledge and expertise to solve your problems.With the environmental pollution of traditional refrigerants a large number of traditional refrigerants need to be recycled and reused, and new environmentally friendly refrigerants have been invented in recent years, giving the company a development belt. With new opportunities, CM has continuously increased its R&D investment in recent years. It has developed many new products such as R600/R290/R1234yf to meet the individual needs of different customers and helped many companies reduced refrigerant waste in production and maintenance process and save large amount funds for, protecting the environment.

History

1998	CM founded in 1998, entered the HVACR industry as refrigerant recovery,reclaim and charging solution provider and manufacturer
2004-2006	2004,successfully launched first generation portable type residential refrigerant recovery unit,featured by compact design,fast recovery rate with pull rod design,after then,it certificated by CE and ISO-9001 and become the most popular recovery unit in the world.
2007-2009	2009,successfully launched commercial and industrial refrigerant recovery recycling system and been authorized by York of Johnson Control to be manufacture refrigerant recovery system with York brand,meanwhile,the industrial recovery machine passed the inspection of York engineering team which capable o
2010-2014	2010,York ex chief engineer Dr Lee joined CM R&D engineering team, meanwhile 25HP rapid refrigerant recovery machine lanuched and been export to Saudi Arabia Ghawar oil field.By the fast recovery rate and unmatched performance,it's been highly praised by the users. f recovering 3 tons refrigerant within 4hours.

Workshop

Exhibition and Clients' Visit

Certifications

Packaging & Shipping

CM refrigerant recovery/recharge/reclaim machines are widely used in the field of HVAC/R. CM is a comprehensive hi-tech. enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry. CM factory, Nanjing Wonfulay Precision Machinery Company Ltd. is located in Nanjing, China. Ever since our establishment in 1990s, CM dedicates to R&D and manufacturer of refrigerant recovery systems. With our unremitting efforts and more than 20 years of experience, our refrigerant recovery systems have got several national and international patents and our machines have earned good reputation among the customers. Refrigerant recovery machine of CM are sold all over the world in 46 countries. CM recovery systems have got ISO and CE certificate and all the machines are made to the ARI 740 standard. CM has established long term and harmonious cooperation relationships with YORK, MIDEA, CARRIER, MCQUAY, etc. CM is your trustworthy partner.Our aim is to become you environmental service helper and your financial manager who will supply you commercial, residential and customized recovery/ reclaim/recharge equipment worldwide. Welcome to join us and become our global dealer. Let CM experts help you share more market.
