R123 rreon recovery system ac recharge machine low pressure R1233zd refrigerant recovery unit

Ask Lasest Price
Brand Name :	CM
Certification :	ISO &CE
Supply Ability :	200 Unit/Units per Month
Price :	$6,660.00/cartons >=1 cartons
Model Number :	CMR123-20

Add to Cart

Product Details
Company Profile

R123 rreon recovery system ac recharge machine low pressure R1233zd refrigerant recovery unit

Product Description

CMR123 Low Pressure Refrigerant Recovery/Recharge Machine Series is specially designed for low pressure refrigerants R123, R141B,R245FA, R1233zd etc, combined with recovery and vacuumfunctions. It’s helpful for maintenance of low pressure chillers and refrigeration equipment.

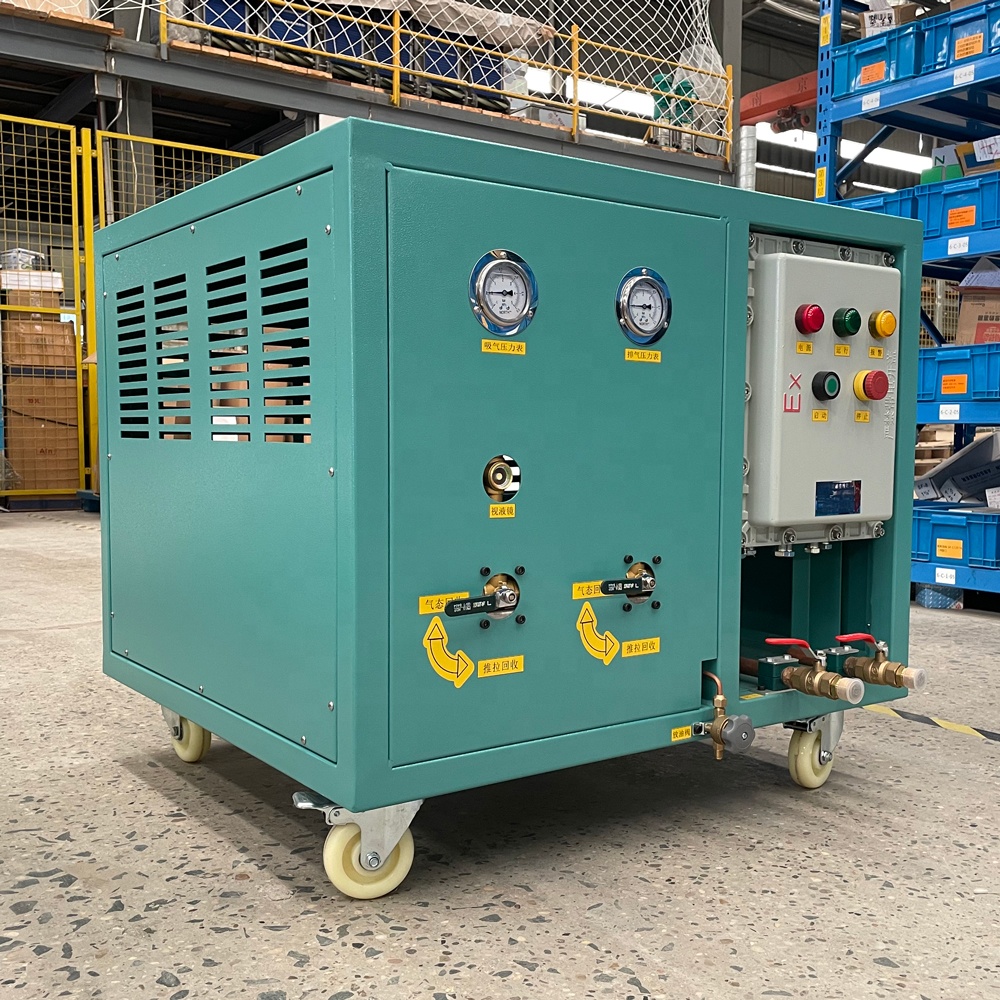

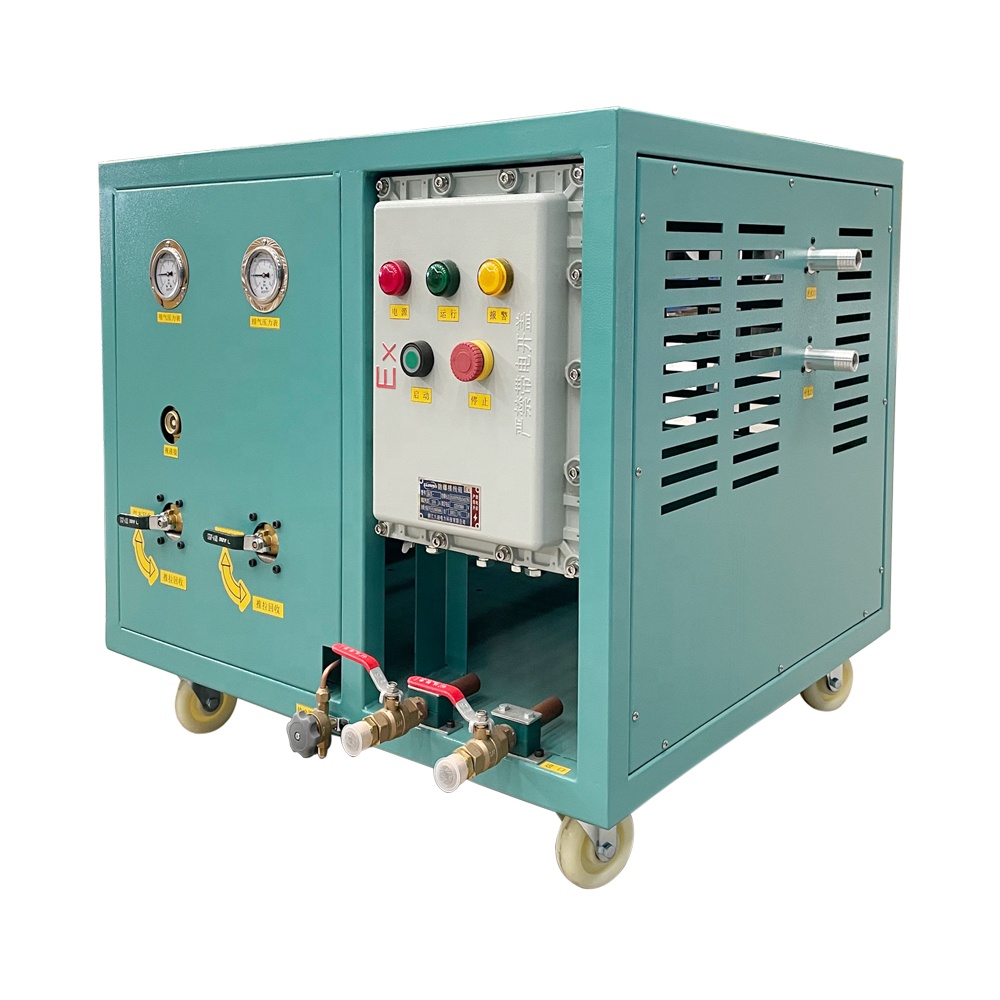

Details Images

R123 rreon recovery system ac recharge machine low pressure R1233zd refrigerant recovery unit

Our Advantages

FEATURES

1- Adopt 4-cylinder oil-free piston compressors special for the low pressure refrigerant recovery;
2- Water-cooled type design make sure the normal running during hot environment;
3- Reversing valve design is convenient for recovery method switching, no need to change the connection horse;
4- High speed recovery rate, the compressor displacement is up to 20m3/hr or 40m3/hr;
5- The functions of recovery and vaccum are combined together, it's so easy for operation;
6- Optimized system design and full safety protection, long time working performance is excellent;
7- Air separator function is custom-designed (Optional).

Product Paramenters

Model	CMR123-20	CMR123-40
Compressor Type	Oil free piston compressor
Compressor Power	2 HP	4 HP
Power Supply	380V/50HZ/3PH		4L/S
Vapor Recovery Speed	≤ 96Kg/hr	≤ 180Kg/hr
Push/Pull Liquid Recovery Speed	≤ 2400Kg/hr	≤ 4000Kg/hr
Operating Temperature	-5°C to 45°C		360360120mm
Suction Pressure	-0.09Mpa ~ +0.15MPa		0~40kg (Standard); 0~100/150kg (Optional)
Discharge Pressure	0 ~ 3bar
Input/Output Pipe Size	3/4'' SAE	3/4'' SAE
Applicable Refrigerant	Low pressure refrigerants like: R123, R1233ZD, R11, R245FA, R141B		2.5 kg/min
Dimension Size(LWH)	830750750mm	830750750mm
Net Weight	120kg	170kg

Recycling Operation

Cooperation Partners & Cases

We had cooperated with global well-known refrigeration equipment manufacturer for many years, especially for the cooperation with YORK Air Conditioning, the deep cooperation of the parties had lasted for 12 years.

No.	Partner Name	Main Product Type	Cooperation Time
1	YORK Air Conditioning	Refrigerant recovery machine	11 years
2	CARRIER Air Conditioning	Refrigerant recovery/recharge machine	06 years
3	MCQUAY Air Conditioning	Refrigerant recovery/recharge machine	09 years
4	CLIMAVENETA Air Conditioning	Refrigerant recovery/recharge machine	04 years
5	TICA Air Conditioning	Refrigerant recovery/recharge machine	08 years

CERTIFICATES

PROJECT CASES

SPECIAL UNITS:

Packing&Shipping

Bulk packing: Large pallet + Straps + Wrapping film

Company Introduction

CM Refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc)are widely used in the field of HVAC/R. CM is a
comprehensive hi-tech. Enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry.

CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems including recovery / recharge / reclaim / vacuum, etc. With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.

WHY CHOOSE CM REFRIGERATION

>> You want experience…
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and service specialists available to discuss your needs.

>> You want someone who understands your process…
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the rich experience and get you the correct solution to your problems.

>> You want a product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique needs.

>> You want professional design manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems solutions.

>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.

>> Our Service:
- OEM & ODM, or any other unique customized demands are acceptable.
- Any price inquiries or technical inquiries will be responded within 24 hours.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Detailed quotation scheme and system configuration will be provided to the customer together.
- The whole order process is tracked throughout:
Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation →Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers'
requirements.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting, solutions, regular return visit etc.
