| Brand Name : | CM |
| Certification : | ce |
| Supply Ability : | 50 Unit/Units per Month |
| Price : | $30,000.00/units >=1 units |
| Model Number : | CM20A |
• CM20 refrigerant filling machine
• 24-hour continuous working
• No cross contamination
• Applicable for all refrigerants
Product Name: CM20 Refrigerant filling machine

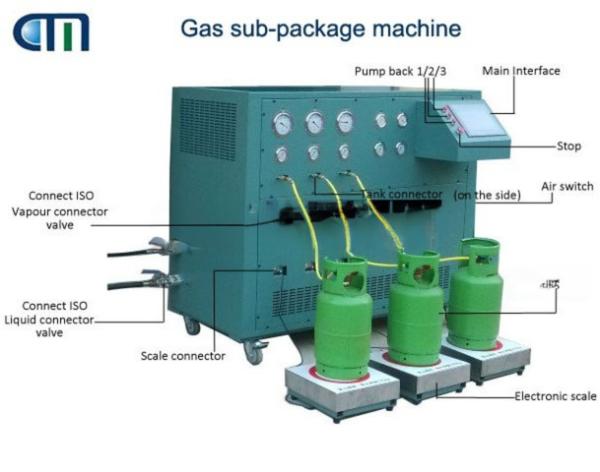

CM20 Multiple-Station Refrigerant filling machine is for the application that Transfer refrigerant
from ISO TANK or 1000-400L tank to 12L-60L tank. It integrates functions of vacuum, recharge
and pumpback. Three stations can work simultaneously, so subpackage efficiency is very high.
The accuracy is 0.5%.
FEATURES
CM20A Refrigerant filling machine
1) Integrate functions of vacuum, filling, and pumpback - high efficiency and no refrigerant loss;
2) Use special booster oil-free compressor, can subpackge various refrigerants like R22/R134A/R410A etc;
3) Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder;
4) Refrigerant filling completely, and auto-stop when the pressure of supply tank is up to -0.04MPA;
5) Three working-station design, high filling efficiency;
6) Overall protection system, safe credible;
7) Filling accuracy is 0.5%;
8) Can make according to customers' requirements.
Specification
CM20 Refrigerant filling machine
Model | Booster compressor | Vacuum Pump | Refrigerants | Filling speed | Scale measurement range |
CM20 | Oil-less | 2L/S×3PCS | R410A/R22/ R134A,etc | ≤6kg/min | 40kg/100kg/150kg/200kg(optional) |
CM20A | Oil-less | 4L/S×3PCS | R410A/R22/ R134A,etc | ≤6kg/min | 40kg/100kg/150kg/200kg(optional) |
|
|
