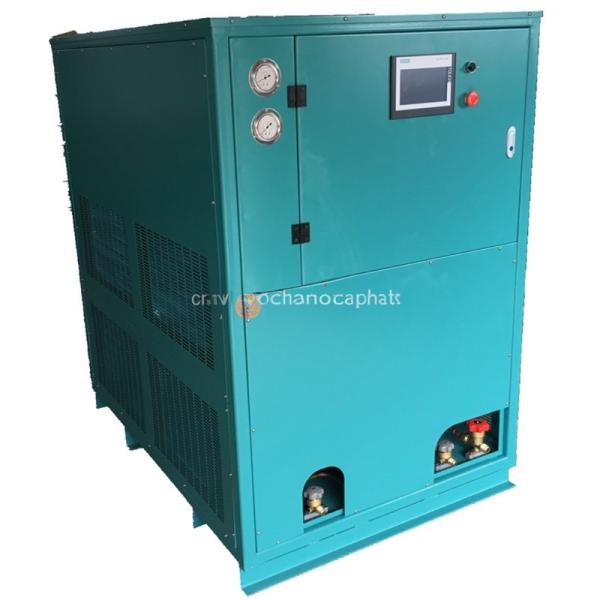

Distilling Commercial Refrigerant Reclaim Machine R134a R22 R410a Reclaiming Machine A/C Repair Line Recycling Machine
CM0901 refrigerant distilling reclaiming machine r134a r22 r410a refrigerant reclaim system purification machine
CM09 series refrigerant recovery&recycling machine is specially
designed for removing moisture,acid and impurity from old and dirty
refrigerant,it utilizes food grade material piston compressor with
smart Siemens PLC control system to offer fast and deep reclaim
rate based on CM 20 years compressor designed experience,the whole
system specially designed according to AHRI740 standard, applied in
various network which including screw
chillers,commercial&industrial refrigeration system and freon
manufacturing plant.
Features & Advantages
·1. Integrated functions of removing oil, acids and moisture
including non-condensable gas.
·2. Oil less SS304 compressor for zero contamination
·3. Capable of handle most common refrigerants,like
R22/R134A/R410A/R32 etc.
·4. Automatic oil drain&non-condensable gas discharge
·5. Over 99.8% refrigerant purity after recycling
·6. Once recovery&recycling process finished,machine stop
working automatically
·7. Large wheels trolley design -- convenient for work site use;
·8. Overall protection device, safe credibility
·9. Controlled by Smart Siemens PLC programmer&touch screen
·10. Can be customized for flammable refrigerants
·11. Integrated of air cooling and water cooling
Specifications:
Model | CM0901 | CM0902 | CM0903 |
Horsepower | 4HP | 10HP | 25HP |
Compressor Displacement | 5m³/h | 20m³/h | 57m³/h |
Compressor Type | Oil-free V-Twin reciprocating | Oil-free three-cylinder reciprocating | Oil-free twin-cylinder reciprocating |
Reclaim Rate | ≤60Kg/h | ≤200Kg/h | ≤300Kg/h |
Refrigerant Purity | ≥99.8% | ≥99.8% | ≥99.8% |
Moisture | ≤10 ppm | ≤10 ppm | ≤10 ppm |
Acidity | ≤1 ppm | ≤1 ppm | ≤1 ppm |
High Boiling Residue | ≤0.01% | ≤0.01% | ≤0.01% |
Non-Condensable Gas | ≤1.5% | ≤1.5% | ≤1.5% |
Applicable Refrigerant | R22,R134a,R410A etc | R22,R134a,R410A etc | R22,R134a,R410A etc |
Voltage | 220V 50Hz 1Ph/380V 50Hz 3Ph | 380V 50Hz 3Ph | 380V 50Hz 3Ph |
Electric Oil Pump
Manual Oil Pump
Steel Cylinder

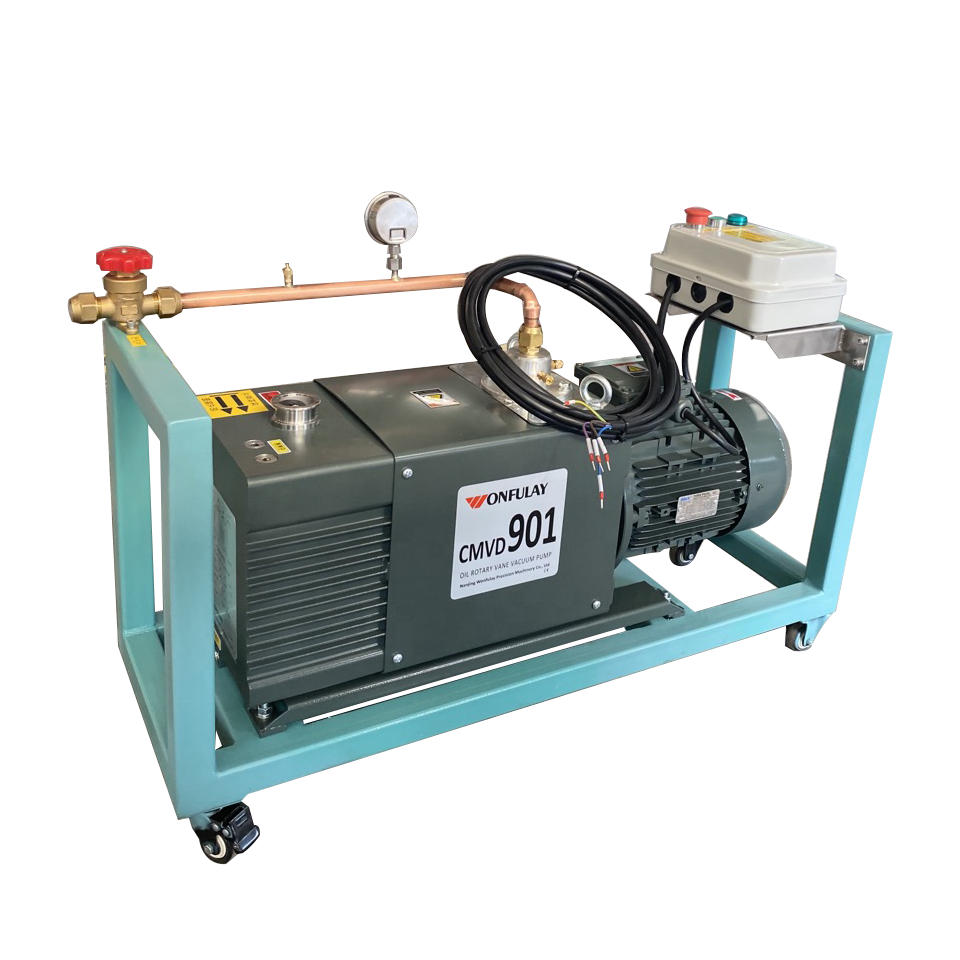

Vacuum Pump
Trolley Tube Pipe Cleaner
Portable Tube Pipe Cleaner
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems(recovery/ recharge/ reclaim/ vacuum/etc). With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
CM(ChunMu)@ChinaRefrigerationExpo
Packing: carton, pallet, wooden case.
Delivery time: within 7-30 days after receiving the payment.
|
|
