R410 Refrigerant Split Charging And Vacuum Pumping Unit

Ask Lasest Price
Brand Name :	CM
Certification :	CE&ISO
Supply Ability :	200 Unit/Units per Month
Price :	$5,000.00/cartons 1-9 cartons
Model Number :	CM20A

Add to Cart

Product Details
Company Profile

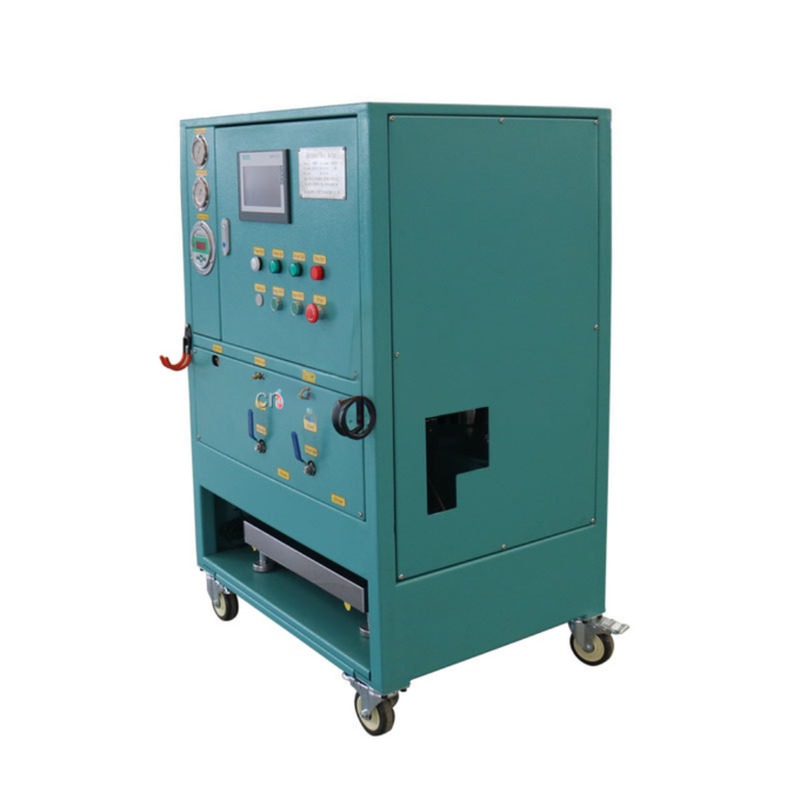

R410 Refrigerant Split Charging And Vacuum Pumping Unit

Product Description

CM8800 Refrigerant Split Charging Machine is used for transferring refrigerant from ISO tank or 400~1000L tank to 12L~ 60L tank. It integrates functions of vacuum, recharge and pump back with high speed and accuracy.

Functions:

1. Vacuum Separately: vacuum the gas from the recovery tank.
2. Pump out/Recharge: Pump out the store tank and recharge into a certain amount of refrigerant.
3. Recharge: Recharge a certain amount of refrigerant into the store tank with refrigerant already.

R410 Refrigerant Split Charging And Vacuum Pumping Unit

No.	Item Name
1.	Siemens PLC Contrller
2.	Name Plate
3.	Work Indicating Lamp
4.	Emergency Stop Switch
5.	Charge/Vacuum Switch
6.	Sight Glass
7./14.	Hanger
8.	Vacuum Inlet / Refrigerant Outlet
9.	Switch Valve
10.	Electronic Scale
11.	Outlet Pressure Gauge
12.	Inlet Pressure Gauge
13.	Vacuum Gauge
14.	Refrigerant Inlet Valve
15.	Air-pressure Setting Valve
16.	Power Interface
17.	Exhaust Valve

Details Images

Our Advantages

FEATURES

1. Adopt refrigerant split charging special use oil-less booster pump, suit for R134a, R22, R410A, etc.

2. Integrates multi-functions: recharge, pump out & recharge and vacuum.

3. High accuracy up to be 0.5% and resolving accuracy up to be 10g.

4. Without refrigerant loss in flexible shaft during refrigerant split charging process.

5. High vacuum speed, standard device with 4L/s vacuum pump.

6. Full protective functions.

7. High split charging speed up to 2.5 kg/min.

Product Paramenters

Model	CM8800
Booster Pump Power	1/2HP
Vacuum Pump Flow	4L/S
Liquid Inlet Port Size	1/2''
Liquid Outlet Port Size	1/4'' (Standard); 3/8'' / 1/2''(Optional)
Electronic Scale Size(LWH)	360360120mm
Weighing Range	0~40kg (Standard); 0~100/150kg (Optional)
Weighing Accuracy	Up to 0.5%
Split Charging Speed	2.5 kg/min
Overall Dimension Size(LWH)	7005001750mm
Package Size(LWH)	7506201840mm
Package Weight	120kg

Recycling Operation

Cooperation Partners & Cases

We had cooperated with global well-known refrigeration equipment manufacturer for many years, especially for the cooperation with YORK Air Conditioning, the deep cooperation of the parties had lasted for 12 years.

No.	Partner Name	Main Product Type	Cooperation Time
1	YORK Air Conditioning	Refrigerant recovery machine	11 years
2	CARRIER Air Conditioning	Refrigerant recovery/recharge machine	06 years
3	MCQUAY Air Conditioning	Refrigerant recovery/recharge machine	09 years
4	CLIMAVENETA Air Conditioning	Refrigerant recovery/recharge machine	04 years
5	TICA Air Conditioning	Refrigerant recovery/recharge machine	08 years

CERTIFICATES

PROJECT CASES

SPECIAL UNITS:

Packing&Shipping

Bulk packing: Large pallet + Straps + Wrapping film

Company Introduction

CM Refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc)are widely used in the field of HVAC/R. CM is a
comprehensive hi-tech. Enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry.

CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems including recovery / recharge / reclaim / vacuum, etc. With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.

WHY CHOOSE CM REFRIGERATION

>> You want experience…
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and service specialists available to discuss your needs.

>> You want someone who understands your process…
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the rich experience and get you the correct solution to your problems.

>> You want a product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique needs.

>> You want professional design manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems solutions.

>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.

>> Our Service:
- OEM & ODM, or any other unique customized demands are acceptable.
- Any price inquiries or technical inquiries will be responded within 24 hours.
- Experienced technical engineers will give the model selection guide or help design the customized model.
- Detailed quotation scheme and system configuration will be provided to the customer together.
- The whole order process is tracked throughout:
Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation →Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales support. Buyer will receive the notification mail (include photos, report or other documents) in each process.
- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers'
requirements.
- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and hard copy.
- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting, solutions, regular return visit etc.
