INTRODUCTION:

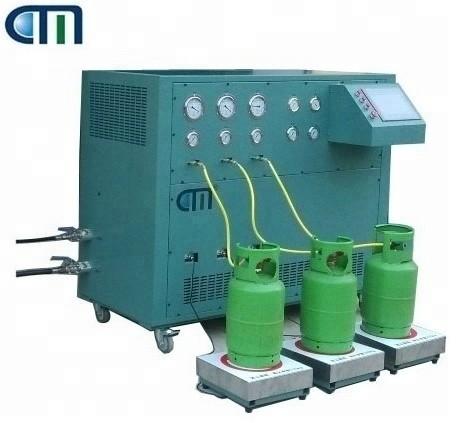

CM20A multiple stage refrigerant sub-package system is for the application that Transfer refrigerant from ISO TANK or 1000-400L tank to 12L-60L tank. It integrates functions of vacuum, recharge and pump back. Three stations can work simultaneously, so sub-package efficiency is very high. The accuracy is 0.5%.
FEATURES:
Integrate functions of vacuum, filling, and pump back - high efficiency and no refrigerant loss;
Use special booster oil-free compressor, can sub-package various refrigerants like R22/R134A/R410A etc;
Suitable for transferring refrigerants from ISO tank or 1000-400L tank to 12-60L cylinder;
Refrigerant filling completely, and auto-stop when the pressure of supply tank is up to -0.04MPA;
Three working-station design, high filling efficiency;
Overall protection system, safe credible;
Filling accuracy is 0.5%;
Can make according to customers' requirements.
SPECIFICATIONS:
| Model | Booster Oil-free Compressor | Vacuum Pump | Filling Rate | Scale measurement range |
| CM20 | 1.5 HP | 2 L/s * 3 units | ||
| CM20A | 1.5 HP | 4 L/s * 3 units | ≤ 6kg/min | 40kg/100kg/150kg/200kg (optional) |
|
|
