Production Description

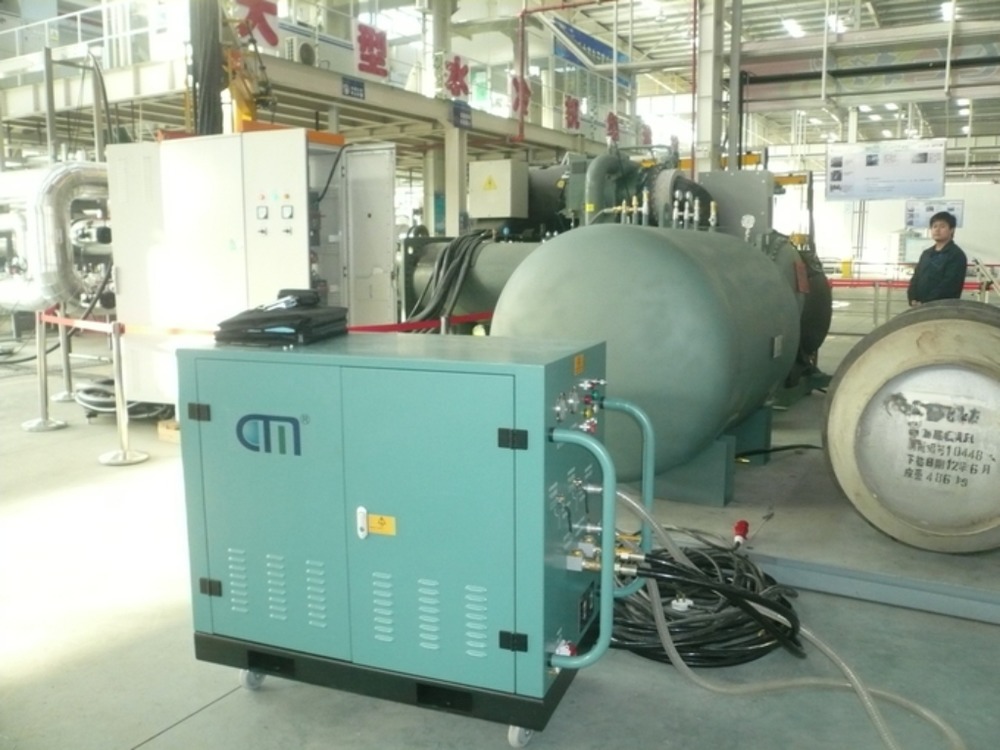

Product Description of WFL18 R22 refrigerant auto ac recharge and recovery machine

Advantages of WFL18 gas recharge station for Centrifugal unit:

• Performance has become a forefront of the industry and meet ARI-700 standards;

• Universal for CFC/HCFC/HFC of medium & low pressure refrigerants;

• 24-hour continuous working;

• No need for special maintenance when recovery different refrigerants, just evacuation.

• No cross contamination;

• High performance/price ratio - rapid investment return Maintenance is simple.

Product Feature of WFL18 R22 refrigerant auto ac recharge and recovery machine:

• Oil-free lubricating compressor - compatible with CFC/HCFC/HFC refrigerants

• Fast recovery recharging rate for both liquid and vapor refrigerants

• Multi-function valve design- simple operation in vapor and push/pull recovery

• Perfect protection system - safe credibility;

• Thorough recovery refrigerant and automatic stop when the suction pressure is up to -0.04Mpa

• Easy to operate and convenient to move;

• Perfect protection system- safe credibility;

• Water/cooled design - Effective heat dissipation

• For 3000kg cooling system, finish all the refrigerant recovery within 5 hours;

Other Terms

Product Specification of WFL18 R22 refrigerant auto ac recharge and recovery machine

• Working & Environmental Temp.: -10-60 degree

• Cooling Type: water cooled( air cooled is optional)

• Recovery Mode: Vapor & Push/Pull Liquid Recovery

• Hose: 3/4"

Voltage of WFL18 R22 refrigerant auto ac recharge and recovery machine (optional)

50Hz/3PH/380V 50Hz/3PH/400V

50Hz/3PH/415V 60Hz/3PH/380V

60Hz/3PH/440V 60Hz/3PH/460V

Optional accessories of WFL18 R22 refrigerant auto ac recharge and recovery machine

• 1/2" connecting hose(length is customizable)

• 3/8" connecting hose(length is customizable)

• 5/8" connecting hose(length is customizable)

• 3/4" connecting hose(length is customizable)

• 3/4" to 3/8" adapter

• 3/4" to 1/4" adapter

• 3/4" to 5/8" adapter

• 3/4" filter

• Cylinder (20L-1000L) customizable

• Float switch for cylinder( length of power cord is customizable)

Application of WFL18 gas recharge equipment for Centrifugal unit

• Transfer refrigerants from ISO tank to tonnage tank;

• Service chillers & other large & medium cooling systems below 3000 cooling ton;

• Large & medium central A/C factories;

• On site maintenance of lage & medium HVAC/R products

Other Information

• Included with Purchase(standard)

• Recovery/Recharging/Filling system 1set;

• Operating manual 1pc

• Certification of quality 1pc

• Payment:T/T

• Delivery:7 days

• Origin:China

• Minimum Order:1 set

• Packaging:Wood case

• Inspection:1 year guarantee

• Samples:Charge

• Remarks:

1-year guarantee, forever technic support
